COMPLETE SETS OF SUNFLOWER AND MELON SEED DEHULLING EQUIPMENT FOR CONFECTIONARY INDUSTRY

TK1000. Sunflower seed dehulling and kernel separating line

Function and Features

TK1000 is the patented products with independent intellectual property. It contains 7 national patents and is designed to clean various impurities in sunflower seeds (including big impurities and small impurities, impurities with almost the same volume and weight compared with raw materials, heavy impurities, light impurities and empty seeds), to hull, remove shells, separate and re-separate. The unhulled seeds will be returned to the huller for 2nd round of hulling automatically, thus the automation degree has been greatly improved. The equipment features low electricity consumption, compact structure, minimum space occupation, low loss of seeds and kernels, automatic feeding of unhulled seeds, easy operation and maintenance. It is well recognized to be the most optimum equipment for sunflower seeds cleaning, hulling and separating in the world

Component:

1.feed-in hopper; 2-elevator; 3- circular-motion cleaner; 4-multi-function cleaner;main part of the machinery (5-pneumatic elevator; 6- huller,Distributed choke-relief and cluster dehuller; 7-shells-seeds-kernels separator; 8-seeds-kernels separator; 9-double-outlets spiral elevator; 10-separator for pin-shaped shells; 11- double-outlets spiral elevator; 12- re-separator; 13- kernels bin; 14- electric control cabinet (According to customers requirements, the photoelectronic integration automation system is also available to be equipped with the whole dehulling line, which features diverse function like angle self-adjustment, computer monitoring, sequential startup control and turnoff control)

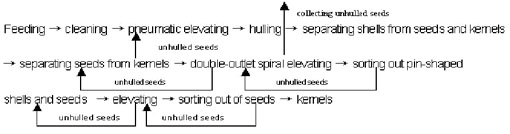

Flow chart

Foundation installation

One pass type model with frame, installed on the leveled floor or ground and free of foundation preparation.

We also suggest the similar line with double capacity - up to 2000 kg/hour on raw material

TFH-150. Pumpkin and watermelon seeds dehulling line

Pumpkin and watermelon seeds dehulling line TFH150

• output capacity - pumpkin/melon kernels: 100 kg/hour maximum
• rate of the integral kernels - 95% minimum
• contents of seeds in the kernels:3% max
• contents of seeds and kernels in the shells - 0,3%max
• power - 10,43 kW/h(380V)
• occupied area - 9,7 X 3,0 X 3,8 (length x width x height)
• weight - 6,2 ton
• delivery: in one 40' sea container
• manpower - 2-3
• FOB delivery Shanghai port: 30 days after advance payment

TFH-150 is the patented products with independent intellectual property. The distinguished characteristic of this equipment is that there is no need to grade the raw materials into more grades, only the AA grade need to be graded into 2 grades and processed separately. Furthermore, there is no need to separate the kernels from seeds by sieves any more, but the positive-pressure separator. Therefore, the process has been simplified and the automatization degree and efficiency have been improved greatly.

Component:

1.The equipment consists of feed-in hopper, 2.vibrating scatter, 3.combined spiral elevator, main part of machinery (4.huller, 5.shells collector, 6.positive-pressure separator which separate the seeds from the kernels, 7.cyclone, 8.spiral discharger), 9.double-outlet spiral elevator,10.positive- pressure separator and electric control cabinet.

Flow chart

Foundation installation

One pass type model with frame, installed on the leveled floor or ground and free of foundation preparation.

We offer costeffective solution of a problem of husks (shels) utilization: - charcoal making equipment

Other recommended equipment for further sunflower and pumpkin kernels processing

QLM800. Sunflower and pumpkin kernels cleaning after hulling.

Capacity: 0.8ton/hour on kernels (the total content of seeds and impurities is less than 5% in the input).Cleaning rate: 99.7% min.Content of seeds after hulling: 1% max.

QLR800. Sunflower and pumpkin kernels cleaning before packing

This line is used to clean the various impurities in the kernels and adjust the rate of broken kernels, and is an ideal equipment to re-clean sunflower/pumpkin kernels before packing.Processing capacity: 0.8 t/h.Content of impurities before packing: 0.1% max.( free of pernicious impurities like glass, clod,stone, hair, metal, etc.)Broken kernels: can be adjusted in the range of 3-10% according to requirement (broken kernel is less than 1/2 of the whole kernel).

QLH-1500. Sunflower seeds cleaning line

This equipment is used to clean the big and small impurities, light impurities, dust, empty seeds and the impurities with the almost same volume and weight in sunflower seeds.Power: 6.98kw (380v).Processing capacity: 1.5 t/h.Cleaning rate: 99.5% min.Loss rate: 0.5% max.

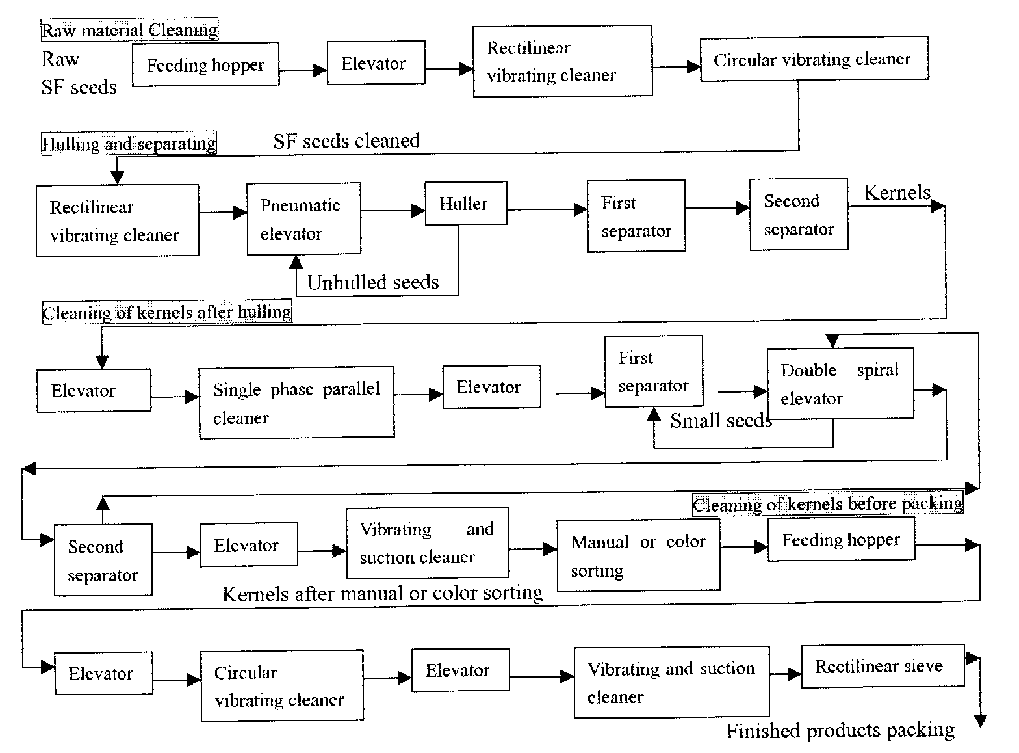

Flow chart of complete line for obtaining of super quality sunflower kernels
