Vivas Co. Sunflower kernels cleaning after hulling.model QLM800

SF kernels cleaning after hulling model QLM600

processing capacity - 800 kg/hour
cleaning rate - 99,7% minimum (in case of no more than 5% of impurities on the input)
broken kernels can be adjusted in the range of 3%-10% in accordance to requirement
contents of unhulled seeds in final product - 1% max
power - 8,78 kW/h(380V)
occupied area - 14 X 5,2 X 3m (length x width x height)
weight - 6 ton
delivery: in three 40' sea container
manpower - 2
processing humidity- 7-12%
FOB delivery Chineese port: 30 days after advance payment

This equipment is used to clean seeds and impurities in the sunflower kernels after hulling, adjust the rate of broken kernels, save hand selection expense and improve the processing efficiency. It is an ideal equipment to process sunflower kernels after hulling.

Components:
Mainly is made up of feed-in hopper, single phase parallel cleaner, 2 separating machine, vibrating & absorbing cleaner for light impurities, central control cabinet, 3 combined spiral elevators and one double-outlet spiral elevator.

Specification

Model	Equipment	Motor model	Qty	Power	Total power
QLM600	Feeding hoper				8.78kw
	Elevator	4-6A	2	0.5kw
	Single phase parallel cleaner	Y 90s-2	2	2.2kw
	Single phase parallel cleaner	4-6A	4	1,0kw
	Elevator	4-6A	2	0.5kw
	First separator	4-6A	2	0.5kw
	Elevator	5-6A	2	0.74kw
	Second separator	4-6A	2	0.5kw
	Elevator	5-6A	2	0.74kw
	Vibrating and suction cleaner	4-6A	4	1.0kw
	Vibrating and suction cleaner	Y 90s-2	1	1.1kw
	Electric control panel

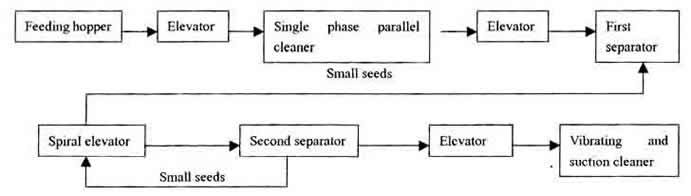

Flow chart


Foundation installation
One pass type model with frame, installed on the leveled floor or ground and free of foundation preparation
