REFINING LINE. WINTERIZATION SECTION SUNFLOWER OIL 50 TONS/DAY

Often, the term "vegetable oil refining" refers only to the processes of removing colloidal (gum-like) substances from the oil (degumming using phosphoric acid), as well as removing free fatty acids (neutralization using sodium hydroxide NaOH). In fact, the refining process has a broader meaning and includes, in addition to the above, also, where necessary, the processes of bleaching, deodorization, and winterization. The result is so-called salad oil, which is highly valued on the market due to its high consumer properties.

Briefly and simplified:

  • Bleaching. The process of removing pigment using so-called bleaching clay to decolorize vegetable oil (giving it a light yellow color).
  • Deodorization. The process of removing the unpleasant odor of oil using live steam.
  • Winterization (oil dewaxing). The process of removing wax-like (paraffin) substances is carried out, mainly, from sunflower oil using special filter powders, which positively affects the consumer properties of the oil during its long-term storage (no cloudiness, no sediment).

REFINING PLANT SECTIONS SUMMARY

  REFINING PLANT SECTIONS POWER (KW) QTY (UNITS) REMARK
1 Degumming, Neutralization and Dehydration Section 77.40 42
2 Bleaching Section 24.10 23
3 WINTERIZATION SECTION 83.40 23
4 Deodorization Section 19.10 23
5 Auxiliary Equipment Outside the Refining Plant 43.20 7
6 Electrical Equipment   1 set Standard GGD control cabinet
7 Electrical Installation Materials     Wires, cables, trays, conduits, explosion-proof connections, etc. Excluding refining plant lighting
8 Installation Materials   1 lot Pipes, flanges, pipeline fittings, etc.
9 Instruments and Valves   1 lot
10 PLC Programmable Logic Controller   1 set Siemens-PLC
11 Finish Painting and Insulation
  TOTAL: 247.2

SUNFLOWER OIL WINTERIZATION SECTION 50 TONS/DAY. SPECIFICATION

Item Drawing No. Equipment Qty Power kW/unit Total Power kW Note (Material)
1 E307 Heat Exchanger 1     CS (Carbon Steel)-4mm
2 E308 Cooler 1     CS-4mm
3 R313 Chilled Oil Tank 1 2.20 2.20 CS-5mm
4 P330 Chilled Oil Feed Pump 1 2.20 2.20 SS (Stainless Steel) pump head

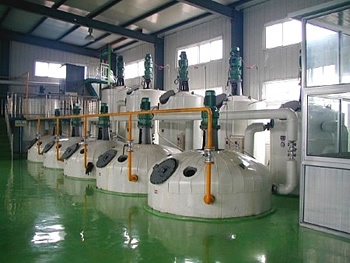

5 R312A-B Crystallizer 2 7.50 15.00 CS-6mm
6 X304 Filter Powder Feeder 1 1.50 1.50 CS
7 X305 Filter Powder Doser 1 1.50 1.50 CS-5mm
8 C303 Screw Freezer 1 35.00 35.00 CS
9 V331 Coolant Tank 1     CS-5mm
10 P315 Coolant Feed Pump 1 4.00 4.00 SS pump head
11 P319A-B Filter Feed Pump 2 5.50 11.00 SS pump head

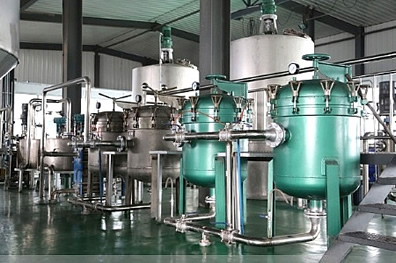

12 R315A-C Filter 2 4.00 8.00 CS, SS filter screen
13 V332 Hydrocyclone 1     CS-5mm
14 V329A-B Bag Filter 2     CS
15 V334,V335 Oil Tank 2     CS-4mm
16 P317,P318 Oil Pump 2 1.50 3.00 SS pump head
17 V330 Paraffin Tank 1     CS-4mm
  Total:   23   83.40
