REFINING LINE. BLEACHING SECTION SUNFLOWER OIL
50 TONS/DAY
Vivas Co.
Odesa
+380 487001892
Often, the term "vegetable oil refining" refers only to the processes of removing colloidal (gum-like) substances from the oil (degumming using phosphoric acid), as well as removing free fatty acids (neutralization using sodium hydroxide NaOH). In fact, the refining process has a broader meaning and includes, in addition to the above, also, where necessary, the processes of bleaching, deodorization, and winterization. The result is so-called salad oil, which is highly valued on the market due to its high consumer properties.
Briefly and simplified:
- Bleaching. The process of removing pigment using so-called bleaching clay to decolorize vegetable oil (giving it a light yellow color).
- Deodorization. The process of removing the unpleasant odor of oil using live steam.
- Winterization (oil winterizing). The process of removing wax-like (paraffin) substances is carried out, mainly, from sunflower oil using special filter powders, which positively affects the consumer properties of the oil during its long-term storage (no cloudiness, no sediment).
| REFINING PLANT SECTIONS | POWER (KW) | QTY (UNITS) | NOTE | |
|---|---|---|---|---|
| 1 | DEGUMMING, NEUTRALIZATION AND DEHYDRATION SECTION | 77.40 | 42 | |
| 2 | BLEACHING SECTION | 24.10 | 23 | |
| 3 | WINTERIZATION SECTION | 83.40 | 23 | |
| 4 | DEODORIZATION SECTION | 19.10 | 23 | |
| 5 | AUXILIARY EQUIPMENT OUTSIDE THE REFINING PLANT | 43.20 | 7 | |
| 6 | ELECTRICAL EQUIPMENT | 1 set | Standard GGD control cabinet | |
| 7 | ELECTRICAL INSTALLATION MATERIALS | Wires, cables, trays, conduits, explosion-proof connections, etc. Excluding refining plant lighting | ||
| 8 | INSTALLATION MATERIALS | 1 lot | Pipes, flanges, pipeline fittings, etc. | |
| 9 | INSTRUMENTS AND VALVES | 1 lot | ||
| 10 | PLC PROGRAMMABLE LOGIC CONTROLLER | 1 set | Siemens-PLC | |
| 11 | FINISH PAINTING AND INSULATION | |||
| TOTAL: | 247.2 |

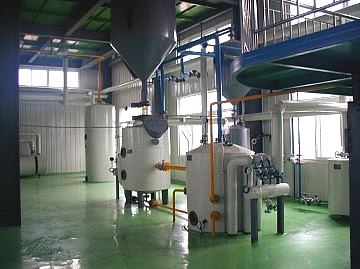

VEGETABLE OIL BLEACHING SECTION 50 TONS/DAY. Specification
| Fig.No | Equipment | Qty | Power | Power | Note | |
|---|---|---|---|---|---|---|
| unit | kw/unit | kw/total | (material) | |||
| 1 | V318,C301 | Dust Filter | 1 | 4.10 | 4.10 | CS Carbon Steel |
| 2 | V319 | Bleaching Earth Tank | 1 | CS-5mm | ||
| 3 | V317 | Bleaching Earth Feeder | 1 | CS-5mm | ||
| 4 | X302 | Bleaching Earth Doser | 1 | CS | ||
| 5 | E305 | Steam Heater | 1 | CS-4mm | ||
| 6 | R309 | Mixer | 1 | CS-6mm | ||
| 7 | R310 | Bleaching Vessel | 1 | CS-6mm | ||
| 8 | V320 | Foam Trap | 1 | CS-5mm | ||
| 9 | V321 | Foam Collector | 1 | CS-4mm | ||
| 10 | P313A-B | Oil Pump | 2 | 5.50 | 11.00 | SS (Stainless Steel) pump head |

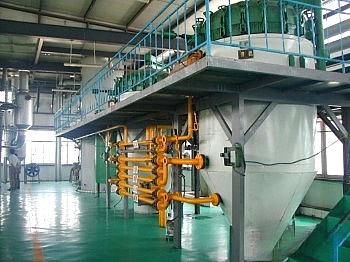

| 11 | R311A-C | Leaf Filter | 2 | CS, SS filter screen | ||
| 12 | V323 | Hydrocyclone | 1 | CS-5mm | ||
| 13 | V322 | Steam-Water Separator | 1 | CS-6mm | ||
| 14 | V324A-B | Bag Filter | 2 | CS | ||
| 15 | V327 | Intermediate Oil Tank | 1 | CS-4mm | ||
| 16 | V328 | Pure Bleached Oil Tank | 1 | CS-6mm | ||
| 17 | P314 | Oil Pump | 1 | 1.50 | 1.50 | SS pump head |
| 18 | E306 | Steam Heater | 1 | CS-6mm | ||
| 19 | V325 | Cleaning Basin | 1 | SS-2.5mm | ||
| 20 | P311B | Vacuum Pump | 1 | 7.50 | 7.50 | CS, SS |
| Total: | 23 | 24.10 |
